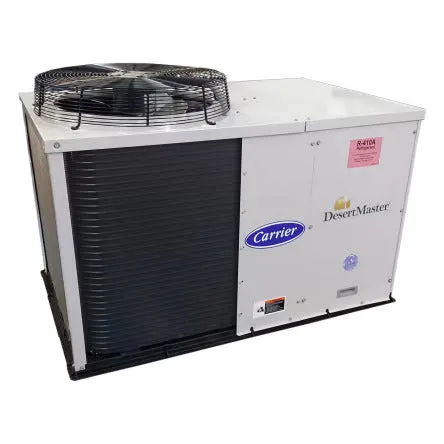

Carrier DesertMaster Package Rooftop 50ZPM Series

50ZPM – 50Hz Nominal Cooling Capacity 3.0 – 5.0 Tons HFC R - 410A Refrigerant

The 50ZPM series are high-efficiency, packaged rooftop air conditioning units designed for residential and light commercial applications. These self-contained units combine cooling and optional electric heating capabilities in a single compact cabinet.

The units utilize environmentally-friendly R-410A refrigerant and are available in three nominal cooling capacities: 3.0 tons (50ZPM-36), 4.0 tons (50ZPM-48), and 5.0 tons (50ZPM-60). They feature a durable, pre-painted galvanized steel cabinet with a baked enamel finish, providing excellent protection against harsh weather conditions.

The 50ZPM units are equipped with high-efficiency hermetic reciprocating or scroll compressors, depending on the model size. The condenser coils feature aluminum fins mechanically bonded to copper tubes, while the evaporator coils are available with either aluminum or copper fins.

The units incorporate a direct-drive, multi-speed indoor blower motor for efficient air distribution, ensuring optimal comfort levels. Vibration isolation measures have been implemented to ensure quiet operation.

With their robust construction, energy-efficient design, and versatile configuration options, the 50ZPM packaged rooftop air conditioning units offer reliable and cost-effective cooling and heating solutions for a wide range of residential and light commercial applications.

Key Features:

1. Compact and Lightweight Design: With identical 32" x 51" footprints, the 50ZPM units are easy to handle and install, making them suitable for space-constrained applications.
2. Easy Maintenance: Multiple removable side panels provide easy access for servicing and maintenance tasks, such as coil cleaning.
3. Indoor Air Quality: The sloped drain pan minimizes standing water, preventing mold and mildew growth, while the rust-proof material ensures no foreign matter is released into the airstream.
4. Energy Efficiency: The units are designed to meet ASHRAE 90.1 minimum efficiency requirements and feature high-efficiency components for optimal energy performance.
5. Versatility: Optional pre-coated aluminum fin condenser coils are available for mildly corrosive coastal environments, while copper fin coils can be specified for both condenser and evaporator sections.
6. Heating Options: Accessory electric heaters are available in various sizes, ranging from 4.6 kW to 18.4 kW, providing supplemental heating capabilities.
7. Certifications: The 50ZPM units are designed and manufactured to comply with various industry standards, including ASHRAE 15, UL Standard 1995, AHRI Standards 340/360, and ISO 9001:2008.
