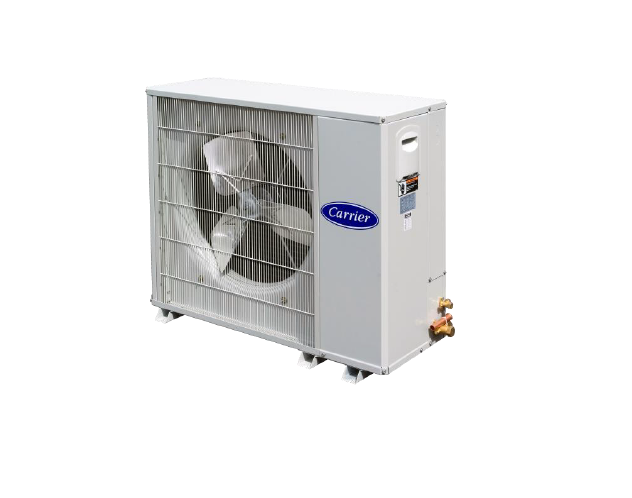

The 38P Series from Saudi Air-Conditioning Manufacturing Company is a line of energy-efficient split condensing units designed for residential and light commercial applications. These units incorporate innovative technology to provide reliable cooling performance and are pre-wired, pre-charged with Puron® R-410A refrigerant, and tested at the factory. The compact design with a small footprint allows installation on the side of a building, roof without roof curbs, or at ground level while ensuring easy access for service and maintenance.
Specification:
Model: 38PKS48DS90
Unit: 4.0 Ton
Cooling Capacity: 48,000 BTU/h
Power Supply: 400V/3Ph/50Hz
Compressor Type: Scroll
Condenser coil: Copper tubes and aluminum fins
Coil test pressure: 630 PSIG (4350 kPa)
Energy Efficiency Ratio: EER up to 12.1
Maximum cooling ambient: 125°F (51.7°C)
Minimum cooling ambient: 55°F (12.8°C)
Dimensions: 945 x 1132 x 444 mm
Weight: 95 kg
The 38P Series offers reliable and efficient cooling across six sizes tailored for residential and light commercial needs.
