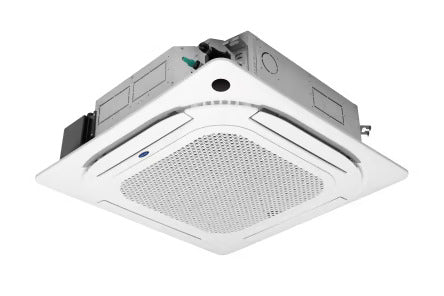

Carrier's Decor Inverter Cassette air conditioners are designed to provide exceptional cooling and heating performance, even in extreme ambient conditions. These units are equipped with non-ozone depleting R410A refrigerant and feature inverter technology for efficient and precise temperature control.
Specifications:
Model Number: 42QTD036V(Indoor) | 38QTD036V(outdoor)
Unit Size: 3.0 TR
Refrigerant: R410A (Non-Ozone Depleting)
Compressor Type: Rotary
Air Filter: Nylon Fiber
Power Supply: 220-240V~1-50Hz
Cooling Capacity Rated at T1 condition: 33,400 BTU/h
Cooling Capacity Rated at T3 condition: 29,000 BTU/h
Heating Capacity: 10,200 BTU/h
Air Flow Rate (High/Medium/Low): 1147/1029/912 CFM
Sound Pressure Level (High/Medium/Low): 52.1/49.6/47.3 dBA
Net Weight Indoor Unit Body: 34.4 kg
Net Weight Indoor Unit Panel: 6.0 kg
Indoor Unit Dimensions Body (W x D x H): 910x910x287 mm
Indoor Unit Dimensions Panel (W x D x H): 1020x1020x50 mm
Pipe Connection Size Liquid: 3/8"
Pipe Connection Size Suction: 3/4"
Pipe Connection Size Drain: ODΦ32 mm
Max. Refrigerant Pipe Length: 30 m
Max. Difference in Level: 20 m
Outdoor Unit Power Supply: 220-240V~1-50Hz
Outdoor Unit Pipe Connection Size Liquid: 3/8"
Outdoor Unit Pipe Connection Size Suction: 3/4"
Outdoor Unit Dimensions (W x D x H): 946x410x810 mm
Outdoor Unit Net Weight: 64.9 kg
Max. Outdoor Air Temp. Operation: 52°C
The Carrier Decor Inverter Cassette air conditioners combine advanced inverter technology, energy efficiency, durability, and innovative features to provide exceptional cooling and heating performance, making them an ideal choice for residential and commercial applications.
