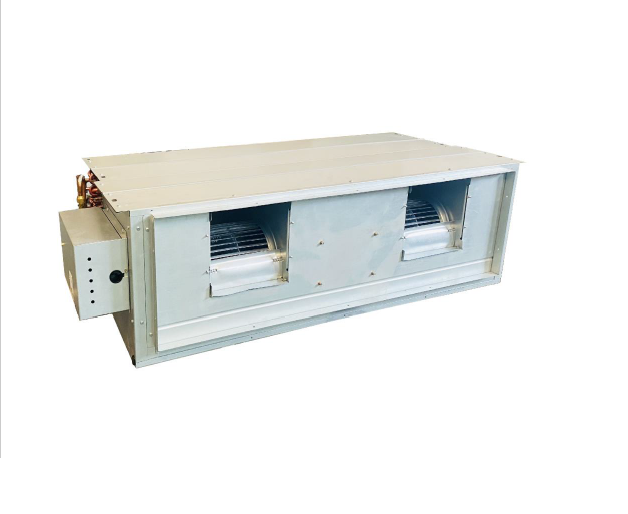

The Carrier 42TKS is a direct expansion fan coil unit designed for horizontal under-ceiling installations in hot and humid environments. It provides efficient cooling with the environmentally-friendly R-410A refrigerant.
Specification:
Model: 42TKS042
Unit: 3.5 Ton
Refrigerant: R-410A
Cooling Capacity: 42,000 BTU/h
Air Filter: 1" Washable aluminum
Air Flow: 1350 CFM
Fan Type: Metallic double inlet forward curved blades
Fan Motor: 3-speed, 80-500W
Casing: Galvanized sheet metal
Insulation: 6mm, 50 kg/m3 NBR closed cell foam
Drain Connection: 3/4" NPT, externally threaded
Connection Type: Sweat/Soldered
Liquid Line Size: 3/8"
Suction Line Sizes: 5/8" - 7/8" depending on size
Power Supply: 230V/1Ph/50Hz
Dimensions: 1440 x 645 x 375 mm
Weight: 57 kg
The 42TKS provides efficient and compact cooling via an integrated fan coil design with advanced features like a condensate management system and low noise levels. Its slim height and sweat piping connections allow for easy installation in tight ceiling spaces.
