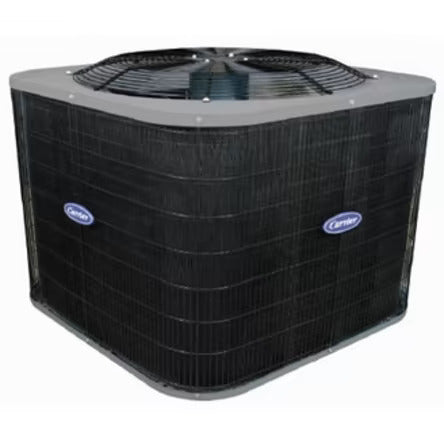

The Carrier 38CKM / FB4CSL is a high-efficiency ducted split system that incorporates advanced technologies to provide reliable and efficient cooling performance. It features an environmentally-friendly R410A refrigerant that does not deplete the ozone layer.
Specifications:
Model: FB4CSL048L0(Indoor) | 38CKM-048X(Outdoor)
Unit: 4.0 Ton
Compressor: Scroll
Refrigerant: R-410A
Cooling Capacity: 48,410 BTU/h
EER: 12.71 BTU/W
Power Supply: 220/240V-1Ph-50Hz
Indoor Unit Dimensions: 536 x 560 x 1357 mm
Outdoor Unit Dimensions: 792 x 792 x 718 mm
Net Weight Indoor/Outdoor: 39.2/89 kg
All models use R410A refrigerant and have pipe connection sizes of 1/4" liquid line and 5/8" suction line. Refer to installation manual for recommended wiring sizes.
