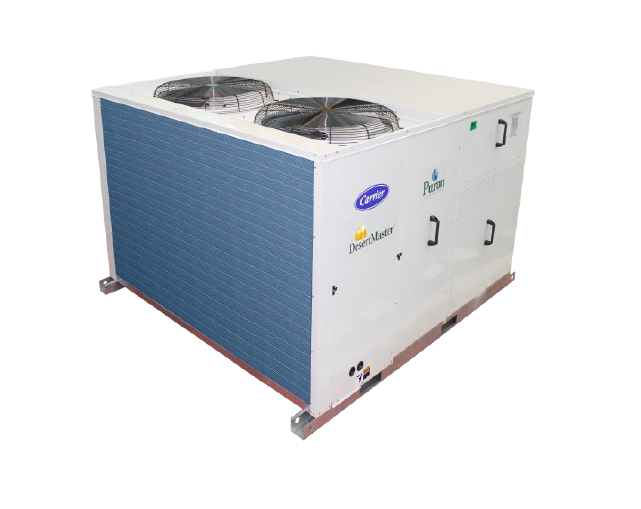

The 50TJM series from Carrier is a range of high-performance rooftop cooling units designed for commercial applications in hot and arid climates. These compact, single-piece units are pre-wired, pre-charged with R-410A refrigerant, and thoroughly tested at the factory, ensuring seamless installation and immediate operation.
Specification:
Model: 50TJM-34A
Unit Size: 34 TR
Cooling Capacity: 28 Tons
Refrigerant: Puron® R-410A
Compressors: 2xScroll (50% Capacity Control)
Metering Device: Thermostatic Expansion Valve(TXV)-Adjustable
Condenser Coil: Copper Tube, Aluminum LSW Fins (Standard) or Copper Fins (Optional)
Condenser Coil Pressure: 450 PSIG(31 bar)
Evaporator Coil: Copper Tube, Aluminum Fins (Standard) or Copper Fins (Optional)
Evaporator Coil Pressure: 350 PSIG(24 bar)
Condenser Fan Motor: Induction Motor-Totally Enclosed
Evaporator Fan Motor: Induction Motor-TEFC
Electrical: 400V/3Ph/50Hz
Dimensions(L x D x H): 3200x2485x1400mm(126x98x55in)
Weight: 1,215 kg(2,877lbs)
With their robust construction, energy-efficient design, and versatile installation options, the 50TJM series from Carrier offers a reliable and cost-effective cooling solution for commercial buildings in hot and arid regions.
