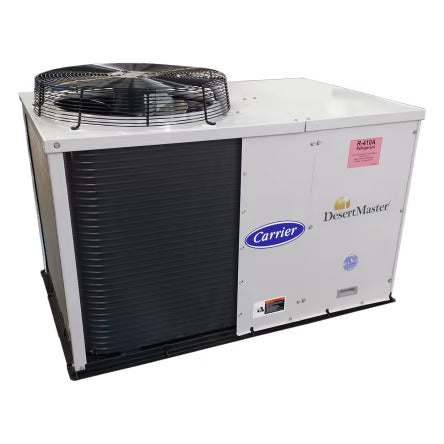

wThe 50ZPM is a high-efficiency, packaged rooftop air conditioning unit designed for residential and light commercial applications. It is a self-contained unit that combines cooling and optional electric heating in a single cabinet. The 50ZPM uses environmentally-friendly R-410A refrigerant and is available in three nominal cooling capacities: 3, 4, and 5 tons.
Specifications:
Model: 50ZPM-60
Unit: 5.0 Tons
Refrigerant Type: R-410A
Refrigerant Charge: 7.38 lbs (3.35 kg)
Compressor Type 1: Scroll
Condenser Coil Face Area: 13.0 sq.ft (1.21 sq.m)
Condenser Fan Airflow: 3700 CFM (6283 cu.m/hr)
Evaporator Coil Face Area: 6.1 sq.ft (0.57 sq.m)
Unit Dimensions (W x D x H): 31.99" x 50.98" x 46.62"
Unit Weight: 352 lbs (160 kg)
Indoor Fan Motor: 1 HP, ECM
Nominal Indoor Airflow: 1650 CFM
With its compact size, robust construction, and energy-efficient design, the 50ZPM series is an ideal choice for reliable and cost-effective cooling and heating in residential and light commercial applications.
